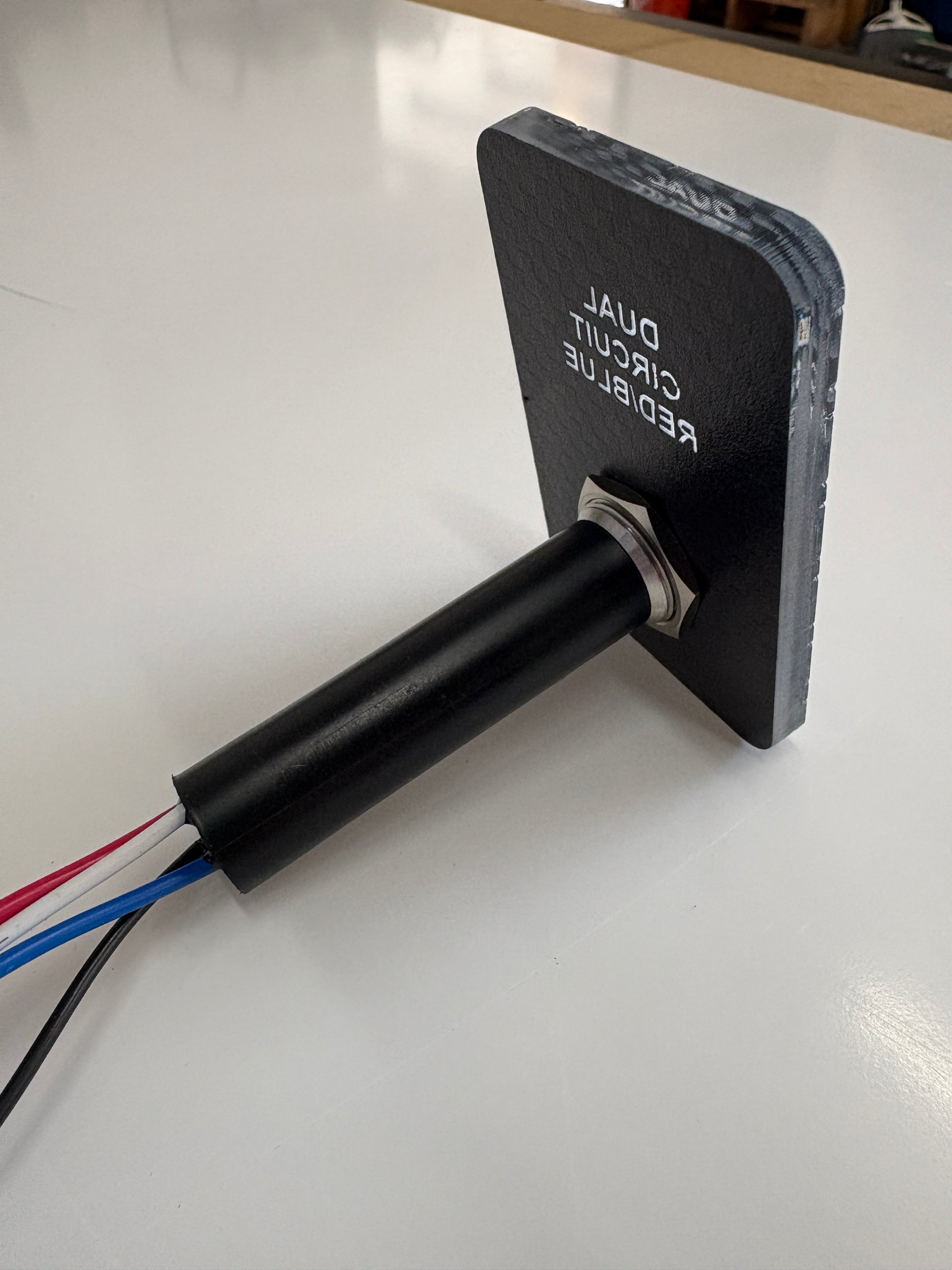

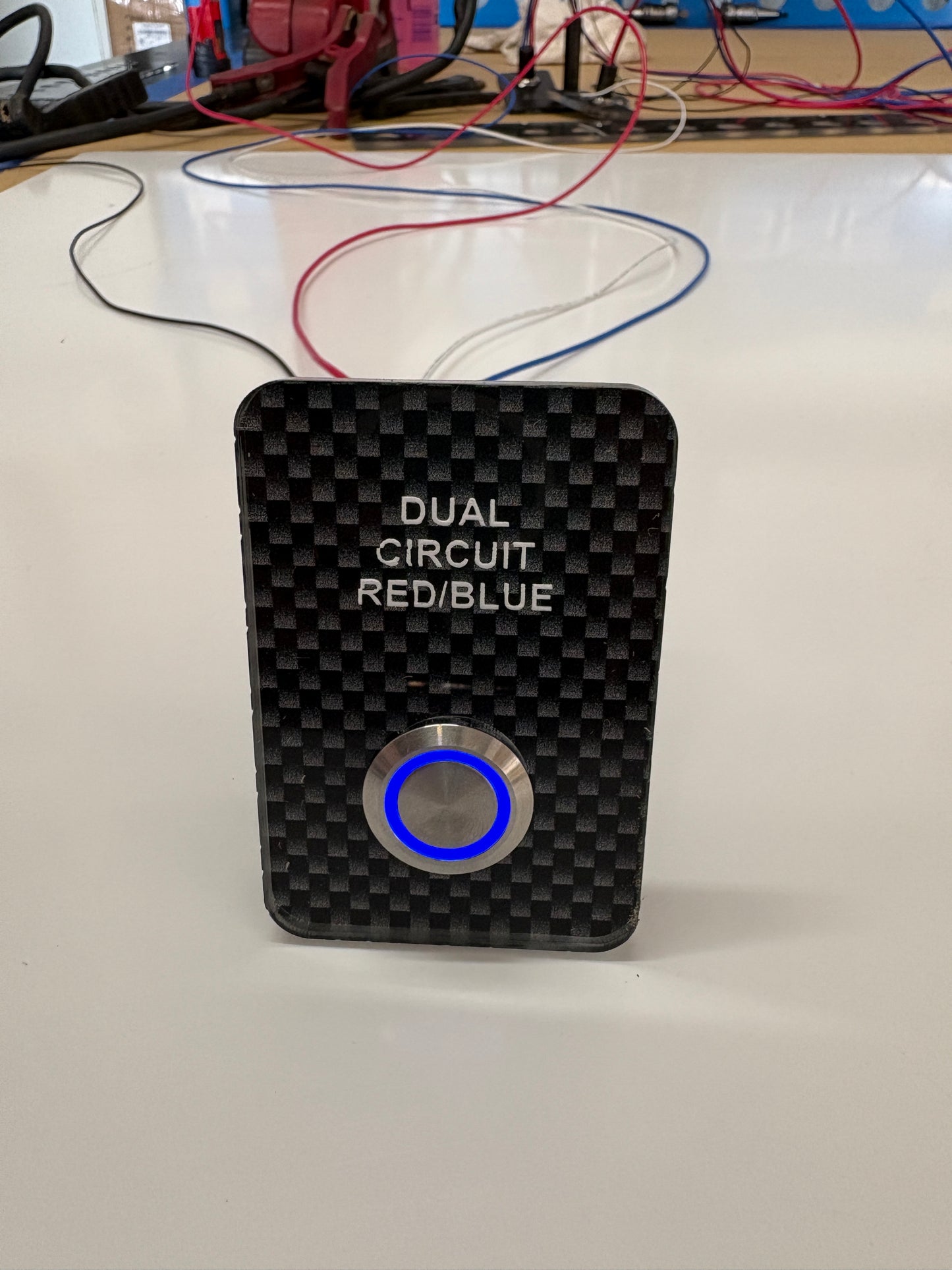

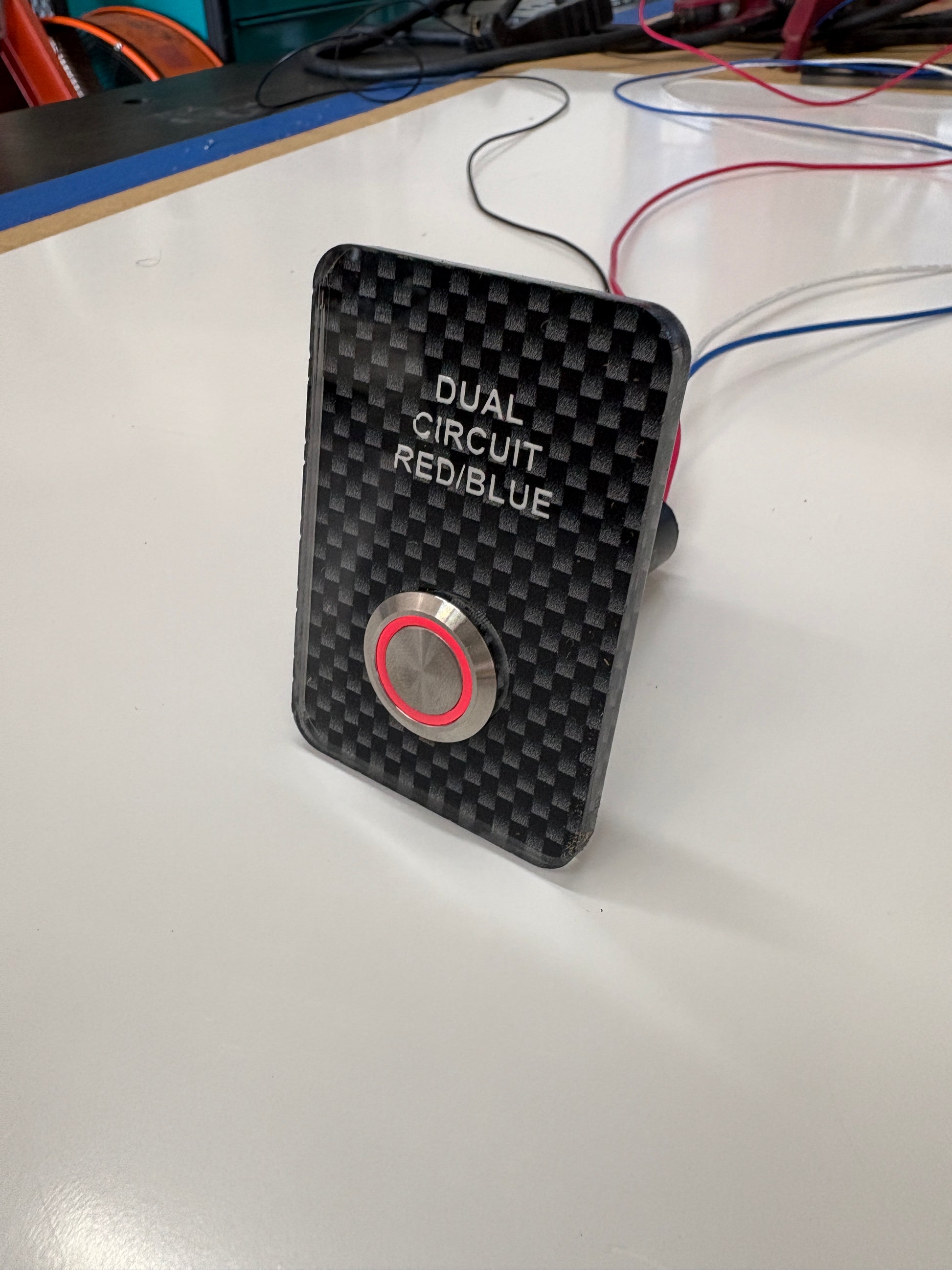

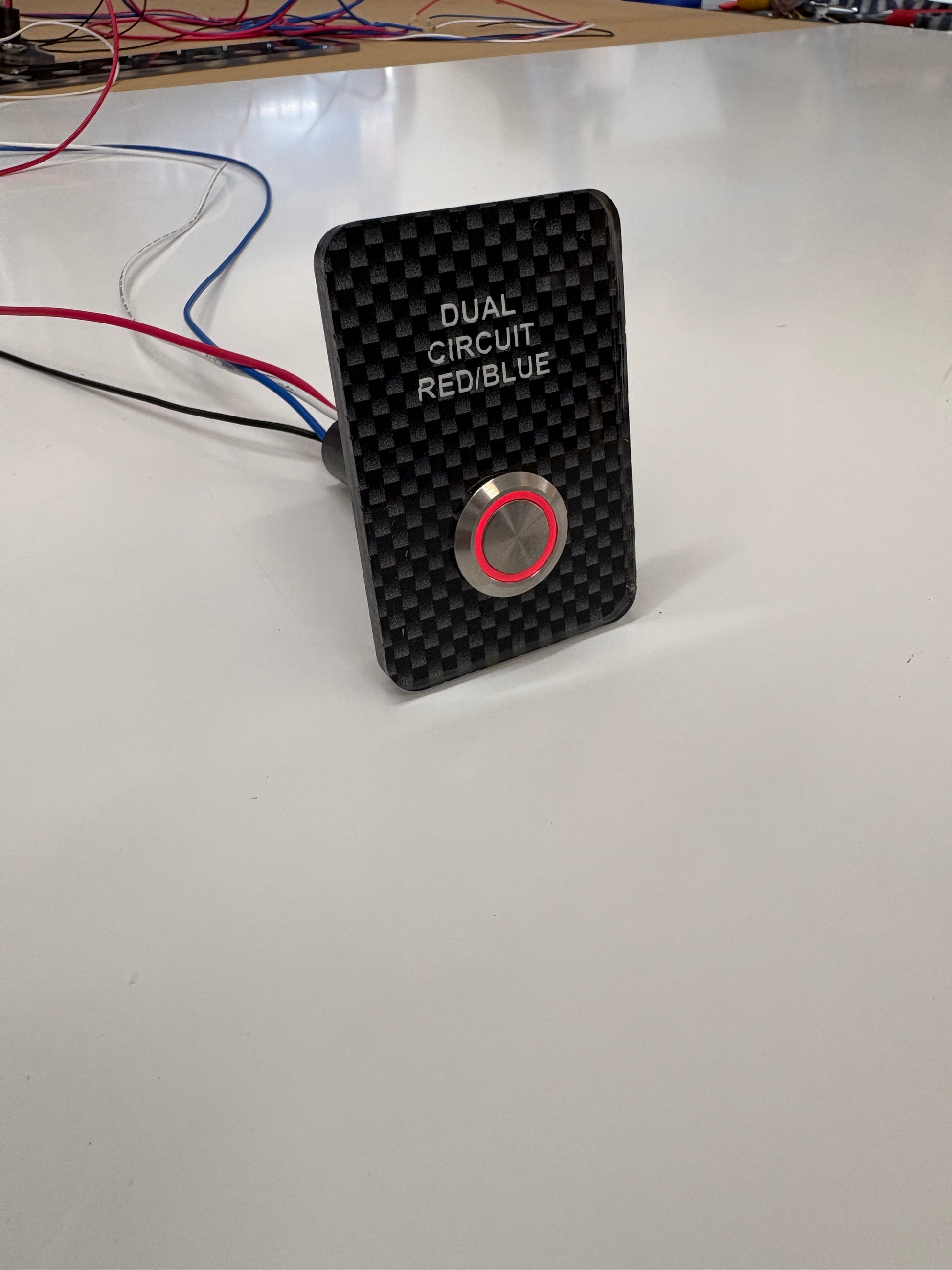

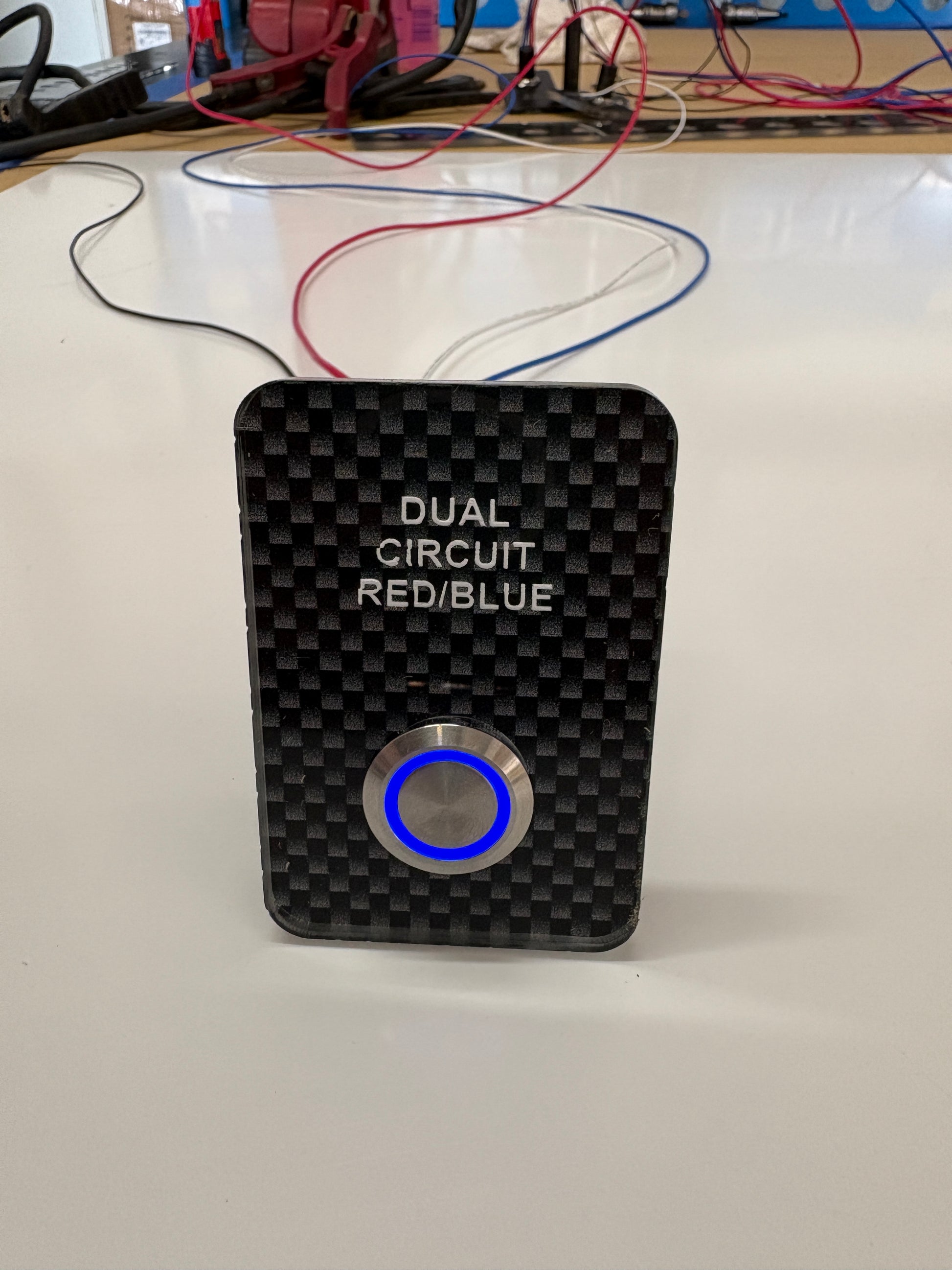

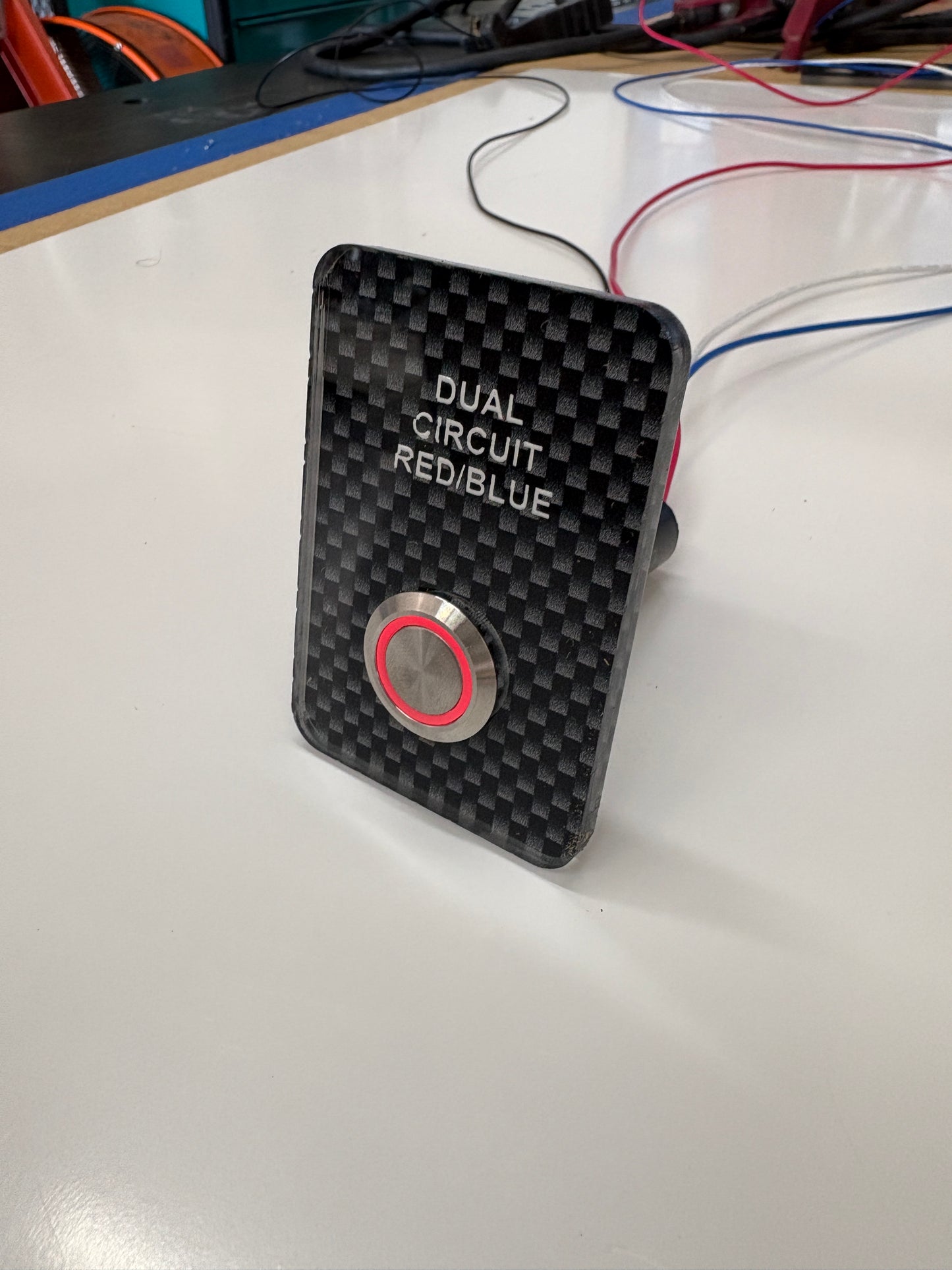

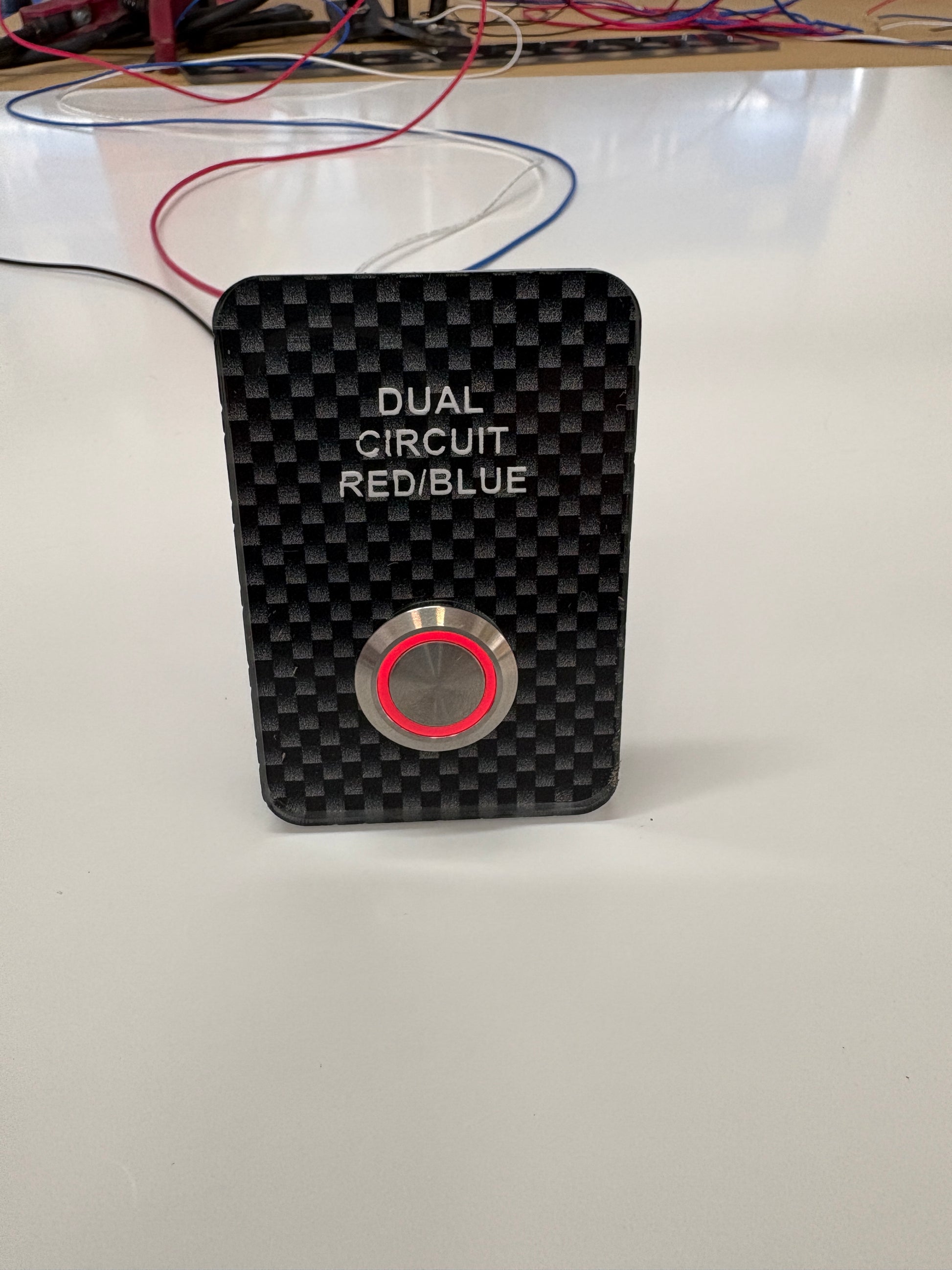

Engineered for marine and industrial applications, this blue/red light 19 MM dual circuit switch delivers professional-grade performance in a compact design. Constructed from 316 stainless steel with gel-filled technology, it maintains a robust 10-amp rating while offering superior corrosion resistance. The IP67 waterproof rating ensures reliable operation in demanding environments, and its 3/8" long threaded barrel installation provides a secure fit. Operating at 12 volts, this switch serves as a direct replacement for standard 19 MM competitor models, offering the same functionality with a refined, space-efficient footprint ideal for applications that matter.
The cost will be for 1 switch in blue/red 19MM. 12 Volt. Wiring is 48 inch long, 14-gauge tinned copper.
Red wire power in
Blue wire power out
White wire power out
Black wire switch light ground
Example of the switch would be for your nav and anchor light on 1 circuit. Click once nav light, click twice nav and anchor light and click third time will be off.
